KY210-G Variable Speed Lathe
Specification of KY210-G Variable Speed Lathe
|
|
Model No. |
KY210-G |
Swing over bed |
210mm |
Swing over cross slide |
110mm |
Distance between centers |
400mm |
Width of bed |
100mm |
Spindle bore |
21mm |
Spindle taper |
MT3 |
Number of spindle speeds |
Variable speed |
Range of spindle speeds |
50-2500rpm |
Number of metric threads |
10 |
Range of spindle speeds |
0.5-3mm |
Number of imperial threads |
8 |
Range of imperial threads |
8-44 T.P.I |
Range of longitudinal feed |
0.1-0.20mm |
Tool post type |
4 |
Max compound slide way |
55mm |
Max carriage slide travel |
75mm |
Max carriage travel |
276mm |
Tailstock travel |
60mm |
Tailstock tape |
MT2 |
Main motor |
600W |
Weight |
75kg |
Dimension |
900X500X500mm |
Standard Accessories |
|
Splash guard |
1pc |
Chip tray |
1pc |
Speed readout |
1 set |
3-jaw chuck |
1set |
Toolbox & tools |
1 set |
Optional Accessories |
|
4-jaw chuck (100mm) |
1set |
Backplate |
1pc |
Follow rest |
1pc |
Steady rest |
1pc |
Face plate (170mm) |
1set |
Live center MT2 |
1pc |
Collet holder |
1set |
8mm turning tools(7pcs) |
1set |
Stand |
1set |

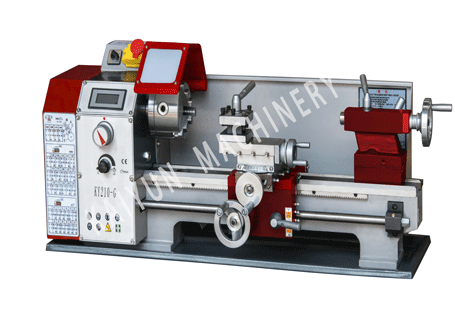

KY210-G Variable Speed Lathe Variable speed lathe is compacted variable speed mini hobby lathe used to process materials into a new object. Its main components include the headstock, bed, feed and leadscrews, carriage, cross slide, compound rest, tool post, and tailstock.
Features of Variable Speed Lathe
1)Gear regulated Low/High handle with optional changing low/high speed and don’t need adjust belt.
2) DC brushless motor with more power.
