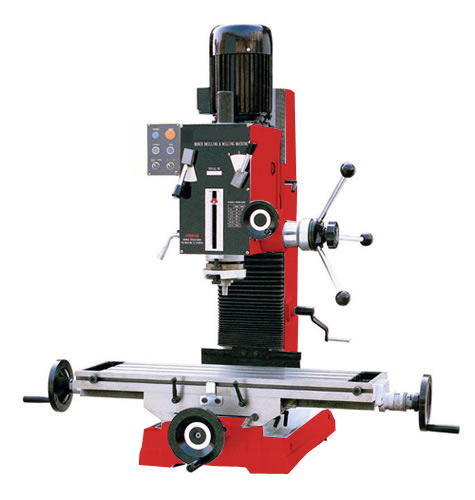

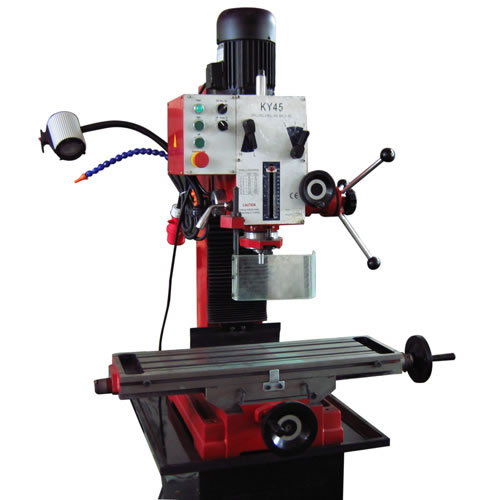

KY45FG, KY40FG, KY32FG Drilling Machine, Milling Machine
Specifications of KY45FG, KY40FG, KY32FG Drilling Machine, Milling Machine
Drilling capacity |
32mm/40mm/45mm |
Face milling capacity |
63mm/80mm/80mm |
End milling capacity |
20mm/32mm/32mm |
Max. Distance from spindle nose to table |
450mm |
Min. Distance from spindle axis to column |
260mm |
Width of Prismatic column with dovetail guides |
130mm |
Column length |
890mm |
Spindle travel |
130mm |
Spindle taper |
MT4 or R8 |
Step of speed |
6 |
Range of spindle speed |
50HZ |
80-1250 rpm |
60HZ |
95-1500 rpm |
Swivel angle of headstock perpendicular |
±90º |
Size of table |
800×240mm |
X axis travel |
500mm |
Y axis travel |
190mm |
Forward and backward travel of table |
175mm |
Left and right travel of table |
500mm |
Power |
1.5KW |
Power Speed |
1700 rpm |
X axis of power |
90W |
Voltage/frequency |
As customer’s requirement |
Net weight |
320kg/323kg /325kg |
Packaging size |
880×770×1140mm |
KY45FG, KY40FG, KY32FG Drilling Machine, As a professional supplier of drilling milling machine in China, Kaiyun Machinery Company strive to provide not only high quality low-priced drilling machines, milling machines, but also offer courteous services.
Our drilling machines, milling machines, metalworking lathes, metalworking lathes, and other products all come with one year warranty. These CE certified and environmentally friendly products sell well in American and European countries.
We look forward to cooperating with you.
OEM FEATURES:
Machine for milling ferrous and non-ferrous materials in general, consisting of a base, table, column and head, with linear movements in the courses of the table and head. 1500w main motor Rotation 1700rpm, Prismatic column with dovetail guides, width 130mm, Column length 890mm, Table dimensions 800x240mm, X axis travel 500mm, Y axis travel 190mm, - Maximum distance from table to tree 450 mm, Distance from tree to column 260 mm, With mechanical and automatic movement on the X axis of 90w power motor.
