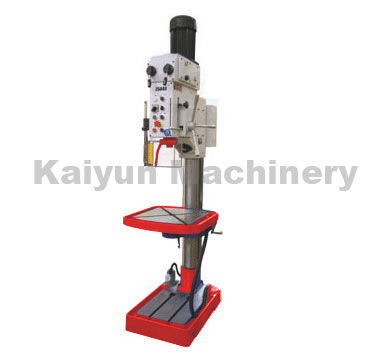

KYZ30, KYZ30C Drilling Machine
KYZ30, KYZ30C drilling machine is an efficient, portable, and affordable machine tool used for milling, drilling, tapping, boring and reaming.
Features of KYZ30, KYZ30C Drilling Machine
1) Our drilling machine has rotating capacity of 360 degrees Head swivels, Table swiveled 180° and tilted of ±45°.
2) Firm and strong stable column.
3) The work bench is a crossed big wide table elevated up or down by geared crank handle.
4) Precise and accurate Micro feeding
5) High quality, Heavy-duty tapered roller bearing spindle
6) Precise ground spindle with larger quill.
7) Positive spindle lock.
8) Spindle has strong protection guard.
9) Simplicity in operation with much lower noise.
10) Sophisticated Double speed motor.
|Specification of Drilling Machine|
|Taper of spindle bore||MT3 or MT4||MT3 or MT4|
|Headstock swivel left & right||±90°||±90°|
|Step of spindle speeds||12||12|
|Range of spindle speeds:||75-3200mm||75-3200mm|
|Table travel:||X-360mm , Y-190mm|
|Table stroke up & down:||620mm||520mm|
|Diameter of column:||115mm||115mm|
|Distance between spindle to column:||272mm||272mm|
|Optional Accessories for Drilling Machine|
|58pcs clamp kits||1set|
|Keyless drill chuck||1pc|
